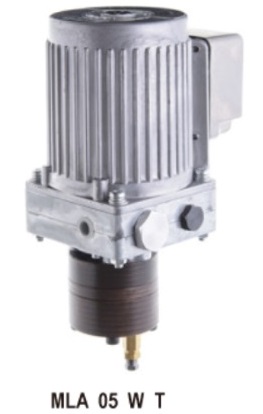

The “LW” pumps, MLA※W and MLB※W models, designed for centralized lubrication system units utilizing the volumetric type system, are small gear pumps featuring a pressure displacement mechanism.

The body and casing of the MLB※W model have been produced from die-cast aluminum and the functioning components have been designed to consume less space, allowing a significant reduction in product weight.

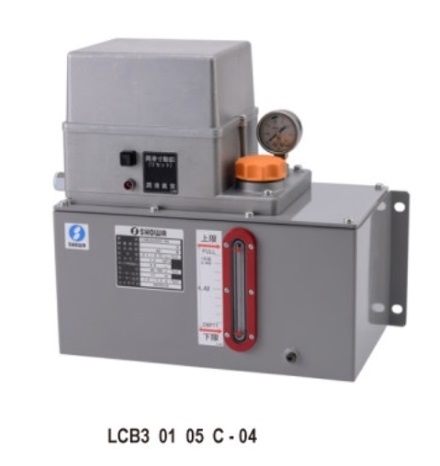

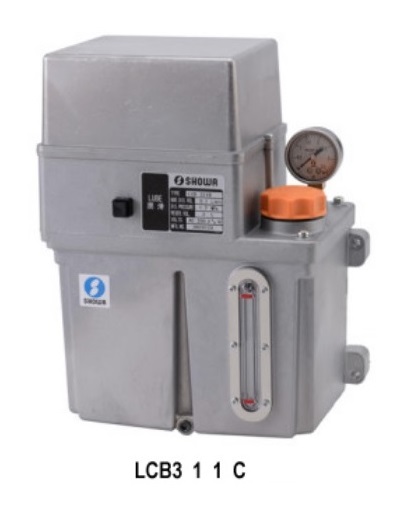

The LCB3 units are fitted with a die-cast aluminum 3.4L tank, cover, and flange. IC timer (control board) fitted units can be adjusted to operate between 2 to 192 minutes. These units are also fited with indicator lamps, enabling verification of operational status and errors. Immediate oil distribution can be intiated manually, by pressing the “Instant Button”.

The LCB3 TMS model lubrication unit possesses a controller which complies to the TMS standards. The unit’s operation (discharge frequency or intermittence) can be controlled by either an intermittence timer or an impulse count timer and may also be controlled from an external source. Possessing a pressure switch & float switch, effective lubrication management can be undertaken.

The LCB4 are a compact centralized lubrication unit supplied without an IC timer (control board). LCB4 pump units are available with varying combinations of a pressure switch, pressure gauge or a float switch. Requires connection to a timer system to enable intermittent operation.

Based upon the LCB4 lubrication unit, the LCB5 are equipped with an IC timer (control board), a pressure switch, a float switch an Instant discharge button and an option to select a 4L extended plastic tank and / pressure gauge. The intermittence time between discharges can be adjusted from a range of 2～180 minutes by simply altering the dip switch settings on the timer

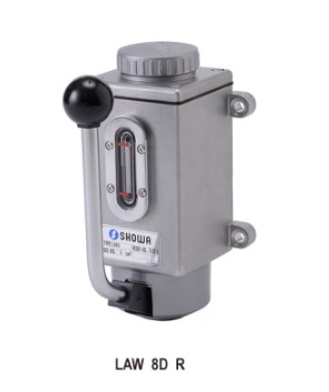

The LAW hand pump is designed for use in a volumetric type system. As oil can be dispensed by pulling upon the lever, installation and operation is simple. 2 sizes of LAW volumetric type hand pumps are available, which can dispense either 6cm3/stroke or 8cm3/stroke of oil.
