The slim and compact SX series supports digital input/output and is built in with multiple analog I/O channels.
* Used for PID temperature/humidity control, 2-axis AC motor drive constant speed control, temperature control using a analog signal monitoring of a whole factory. (PLC EASY LINK)
* MPU points: 10 (4DI/2DO, 2AI/2AO)
* Max. I/O points: 230
* Program capacity: 8K Steps
* Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.
* High-speed pulse output: Supports 2-point independent high-speed pulse output (Y0 of up to 50KHz and Y1 of up to 10KHz).

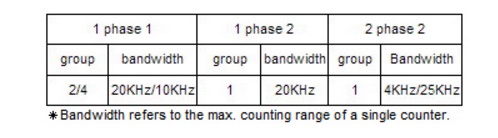

* Built-in high-speed counter

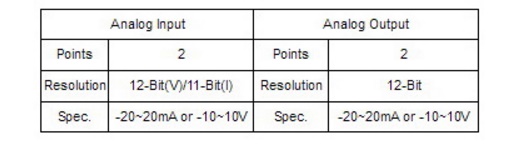

* Built-in analog I/O function
* Max. I/O points: 230
* Program capacity: 8K Steps
* Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.
* High-speed pulse output: Supports 2-point independent high-speed pulse output (Y0 of up to 50KHz and Y1 of up to 10KHz).
* Built-in high-speed counter
