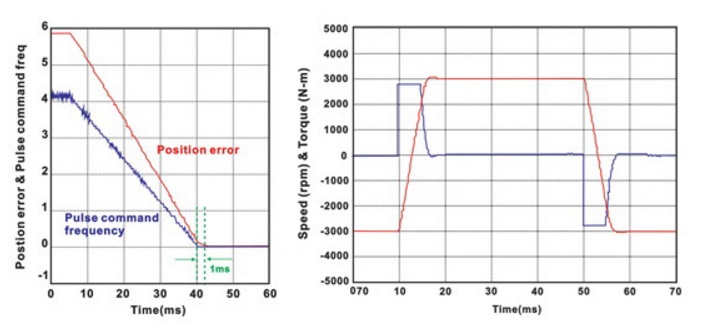

* High-resolution encoder with 17-bit (160,000 p/rev) is equipped as a standard feature which satisfies the application needs of high precision positioning control and stable rotation at low speed.

* Motor sizing software is offered for the customers to conduct the estimation of the equipment conveniently.
* ASDA-Soft configuration software (tuning software) is provided for the customers to meet the performance requirements quickly.

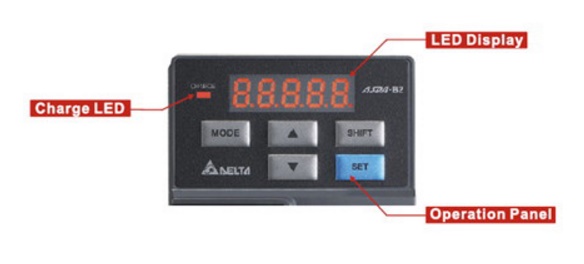

* Easy-to-use digital keypad is ideal for setting parameters and monitoring the servo drive and motor directly.
* Servo motor provides brake, oil seal etc. optional configurations for the requirements of different applications.

* Existing power cables and encoder cables for ASDA series could be used still. When upgrading, there is no need to purchase new accessories.

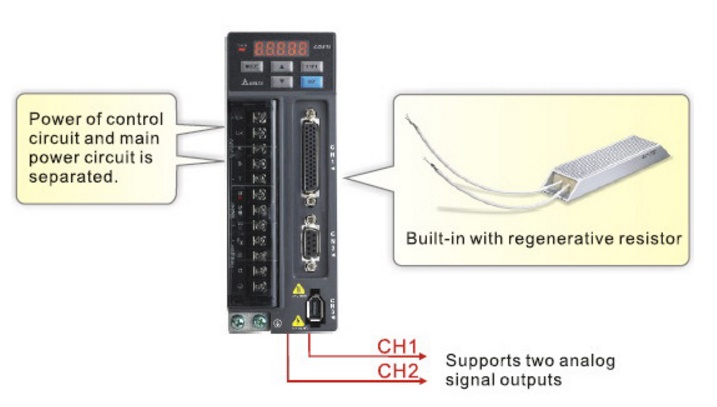

* The control circuit and main power circuit is separated, safety is increased and maintenance is much easier.
* 400W and above servo drive is built-in with regenerative resistor, significantly save the wiring and cost.
* Two analog input terminals (CN5) are provided, easily monitor and the status of the servo motor.
